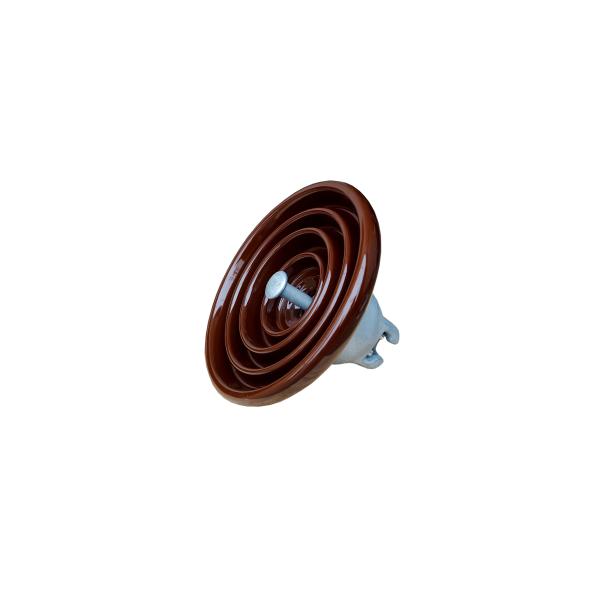

Brown Color OEM ANSI 52-4 Porcelain Suspension Insulator

    Buy cheap Brown Color OEM ANSI 52-4 Porcelain Suspension Insulator from wholesalers

    Buy cheap Brown Color OEM ANSI 52-4 Porcelain Suspension Insulator from wholesalers
    • Buy cheap Brown Color OEM ANSI 52-4 Porcelain Suspension Insulator from wholesalers
    • Buy cheap Brown Color OEM ANSI 52-4 Porcelain Suspension Insulator from wholesalers

    Brown Color OEM ANSI 52-4 Porcelain Suspension Insulator

    Ask Lasest Price
    Brand Name : CPE
    Model Number : 52-4
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 3000PCS PER MONTH
    Delivery Time : 35DAYS
    • Product Details
    • Company Profile

    Brown Color OEM ANSI 52-4 Porcelain Suspension Insulator


    Brown color ANSI 52-4 Porcelain Suspension Insulator / OEM available


    Description:


    Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.


    Specification:


    ANSI CLASSDisc dia. (mm)Unit spacing height (mm)Creepage distance (mm)Mechnical failing load (kN)Impact strength (N.m)Routine proof test load (kN)Lower frequency flashover voltageCritical impulse flashover voltageWeight (kg)
    Dry(kV)Wet(kV)Positive(kV)
    52-425414629267633.580501254.6

    Application:


    Suspension insulator can be used on power transmission and distribution overhead lines. Especially on the extreme high voltage transmission lines,it can not be replaced by other insulators.


    Competitive advantage:


    Reasonable insulation structure high reliability of interturn insulation.

    Stainless steel flange low magnetic inductivity high resistivity.Small volume light weight.

    Convenient transportation and flexible installation.

    Low OSS.Low temperature rise.High mechanical strength, strong weather ability.

    Outstanding crack resistance.

    Low thermal expansion coefficient.
